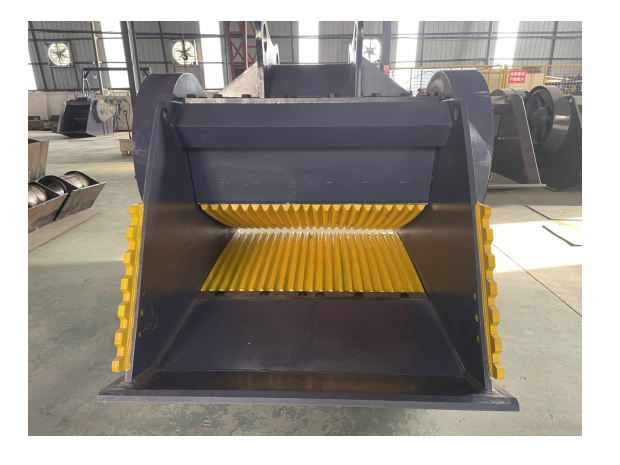

TIT (abbreviation of “Titan” ,originated from the mighty god in ancient Greek mythology.) crusher bucket, a kind of jaw crushers, attached to the excavator arm, can break engineering inert materials into valuable engineering materials quickly.
With the development of the infrastructure industry and the demand tor economical.efficient, and environmentally friendly materials, crushing buckets will be widely used in a variety of materials and multi-field scenarios.
The use of on-site stone materials is directly processed and discharged, which is not restricted by construction conditions and saves transportation costs.
Demolition of urban buildings.shredding construction waste into materials with practical value, and realizing reuse.
Crush the demolished building bricks and other garbage to meet the engineering standards and turn waste into treasure.
It can crush hard materials such as pebbles and ore into various engineering materials.
Process different types of engineering raw materials into standard materials.
|
Dimensions (length, width, height) |
2350*1750*1700 |
MM |
|
Net weight |
5.43 |
T |
|
Capacity |
1.15 |
m³ |
|
Feed size |
450-1300 |
MM |
|
Discharge dimension |
20-140 |
MM |
|
Spindle speed |
360 |
RPS |
|
Productive capacity |
30-80 |
T/H |
|
Motor displacement |
180 |
L/R |
|
Work flow |
240-300 |
L/Min |
|
Working pressure |
28-32 |
Mpa |
|
Weight(including connecting frame) |
5.65 |
T |
