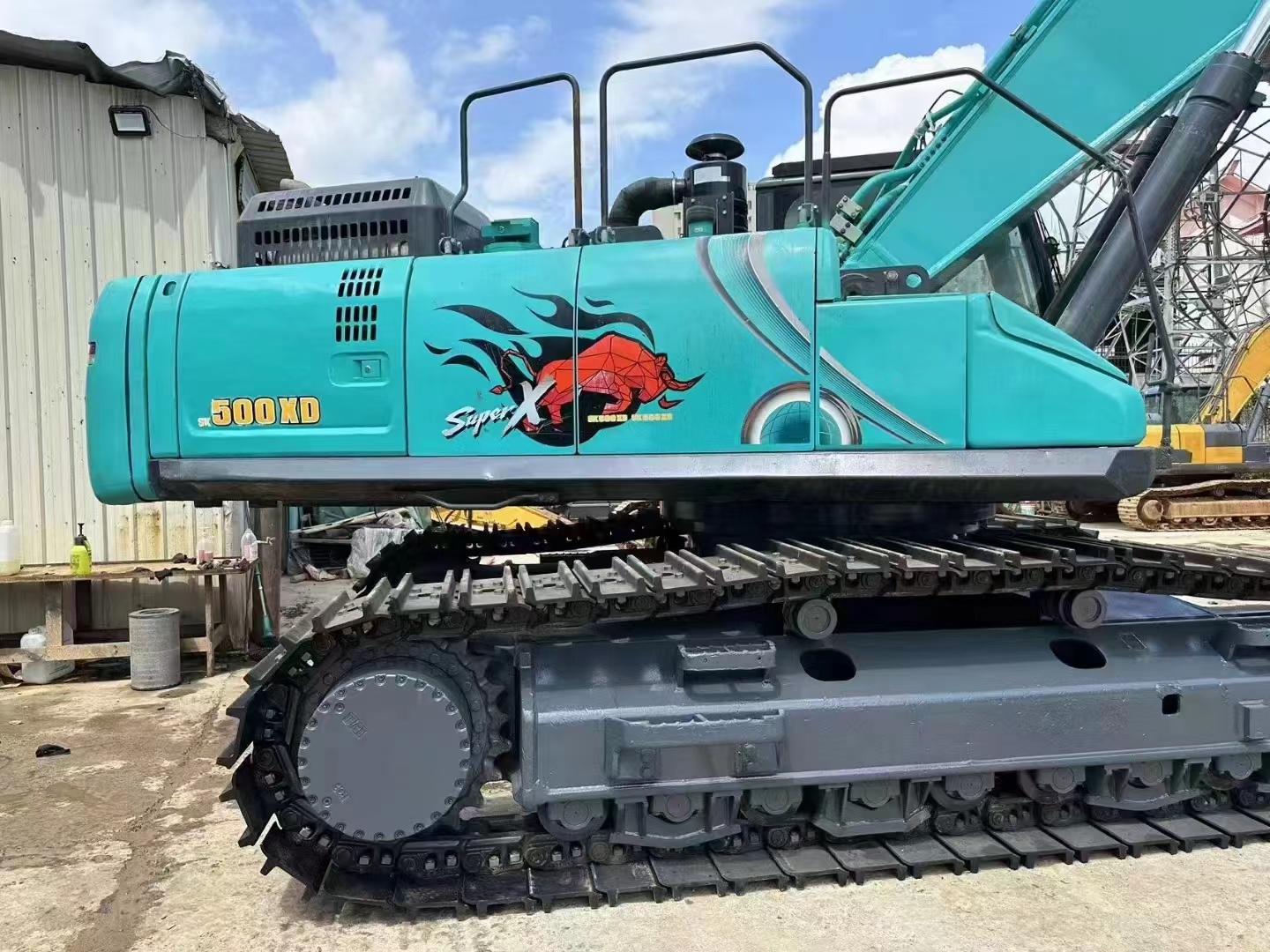

Kobelco designed the SK500XD for extreme durability. It is engineered to operate in the harshest conditions worldwide, such as quarry excavation.

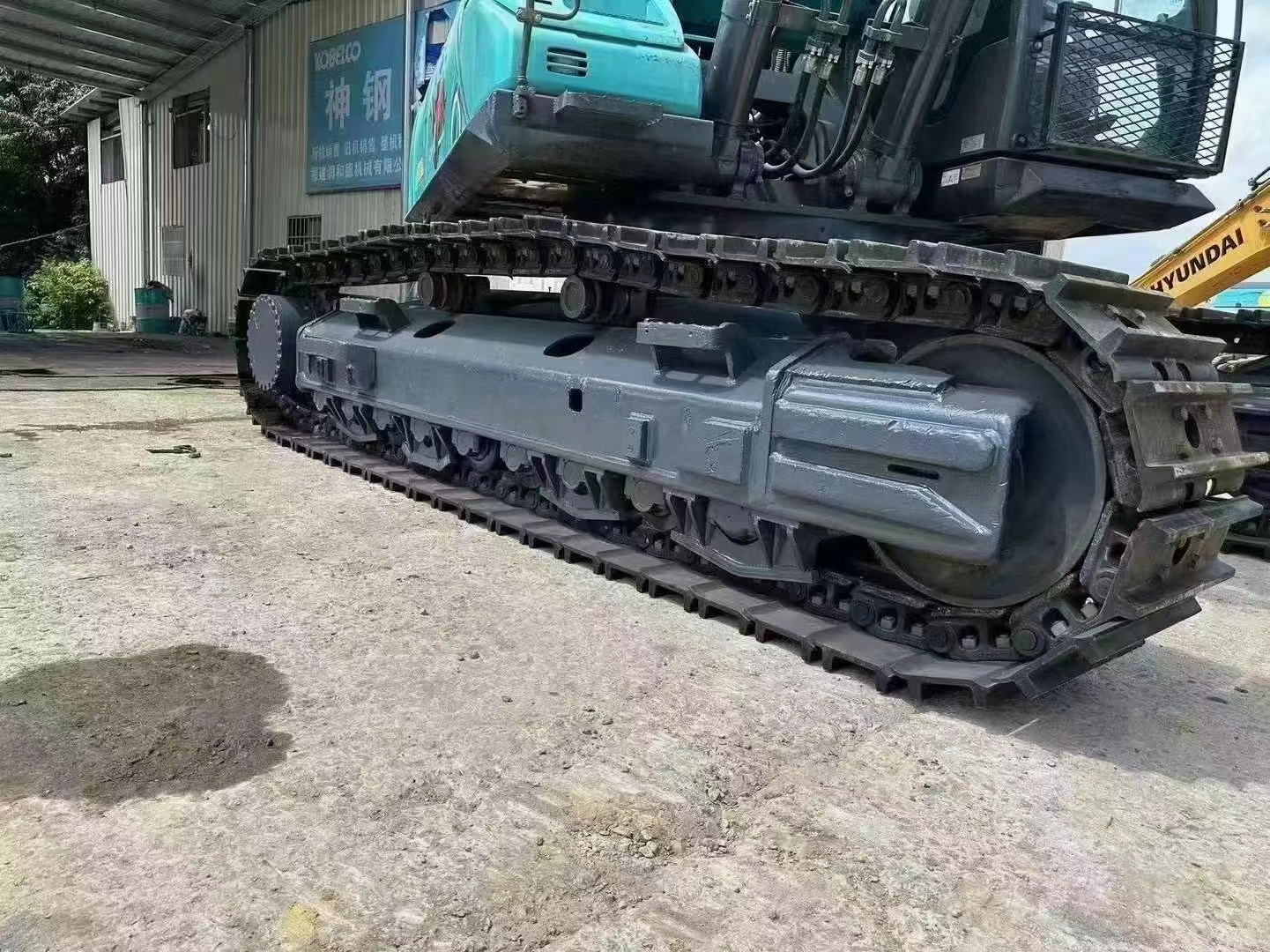

Weighing in at 50,000 kg, the SK500XD is the heaviest machine in its class. It is purpose-built with a robust machine body and substantial additional reinforcements to all key areas of stress and wear across the boom, arm, underbody, and undercarriage.
It comes with factory-fitted, triple-plated, hardened steel applied to all key structural sections, including the boom-to-arm connection, the boom centre, and the end of the arm—providing a high level of durability and longevity to the attachment structures.

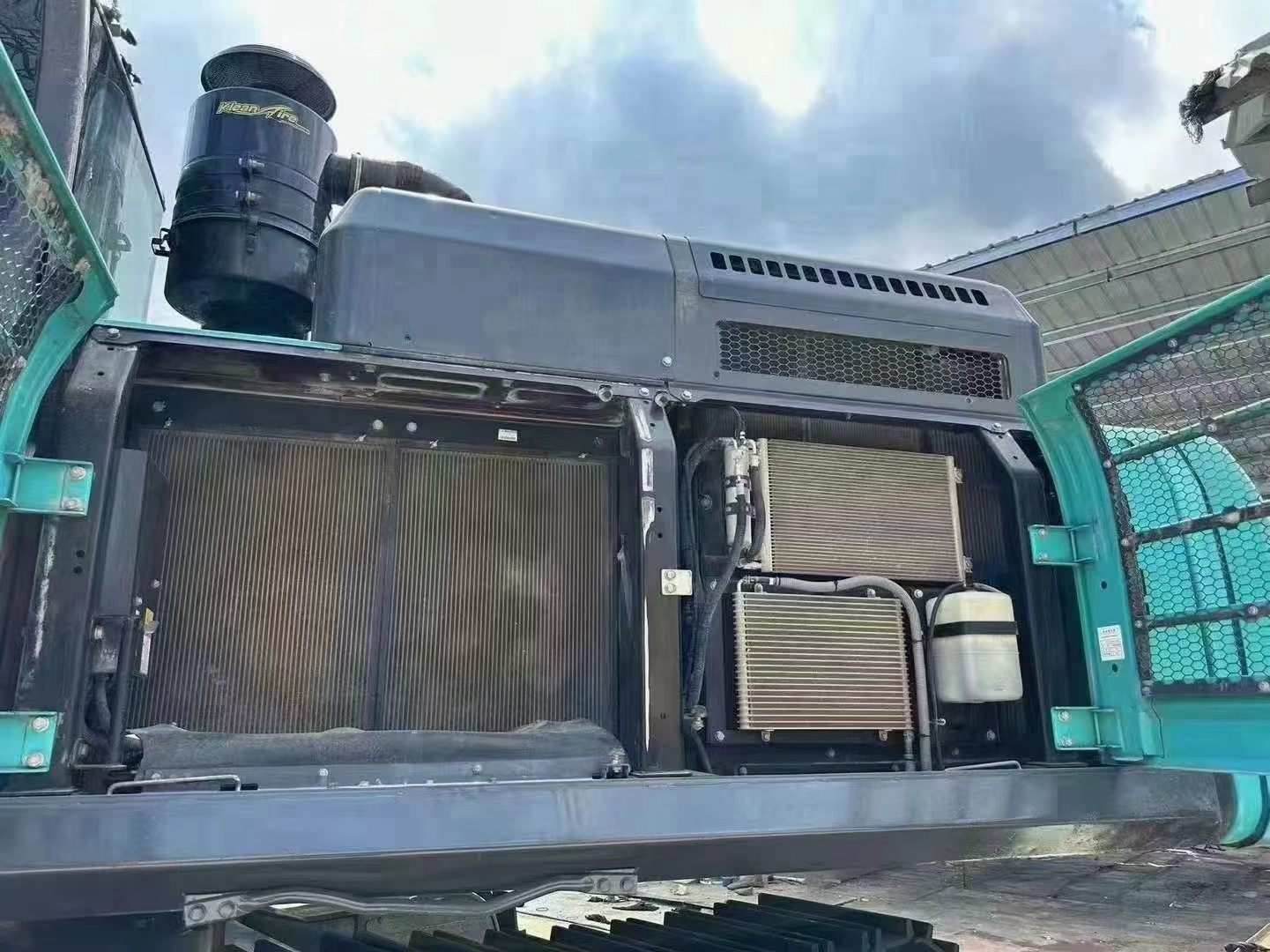

The SK500XD has extended fluid service intervals, easily accessible remote-mounted fluid filters, and modern engine emissions, which are simple to service.
Specifications
| Machine operating weight | kg | 51100 |

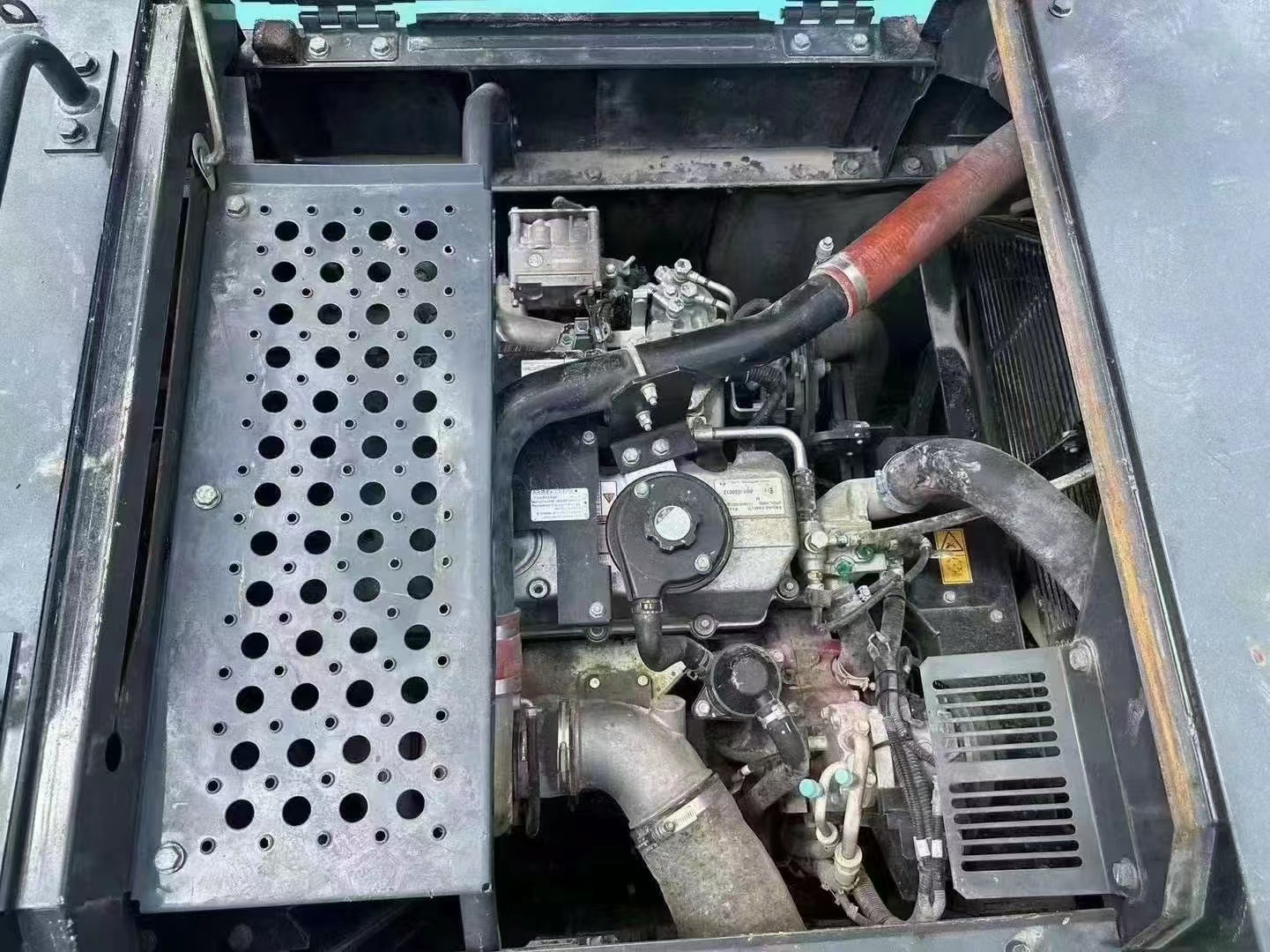

| Engine model | HINO | E13CBB |

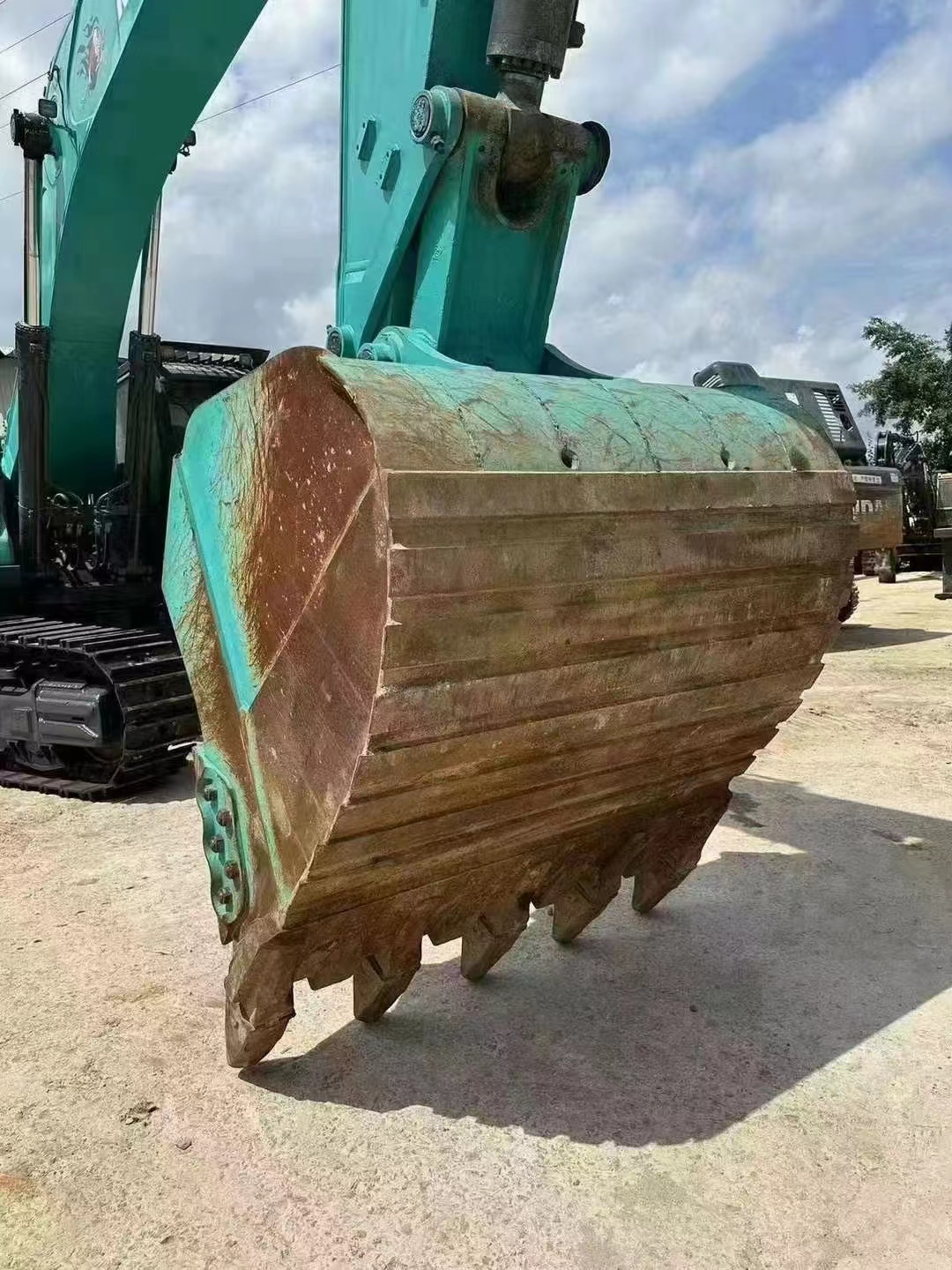

| Bucket Capacity | m3 | 2.1-3.0 |
| Boom length | mm | 7000/6500 |
| bucket arm length | mm | 3000/2600 |
| Speed | km/h | 3.2/ 5.4 |
| Bucket digging force | kN | 267/292 |
| Arm digging force | kN | 223/244 |
| Maximum traction force | kN | 415 |
