Increased hydraulic system pressure improves the machine’s digging force and can handle tougher excavation operations
Improved traction gives the machine better driving capabilities
Save more energy, improve machine efficiency and reduce work cycle time
A more comfortable operating environment and improved operator efficiency
The automatic engine control function is activated under no-load or light-load conditions to reduce engine speed and minimize fuel consumption.
The 320D hydraulic system and components are strategically located to provide a high level of system efficiency. The main pump, control valve and hydraulic tank are located close to each other, allowing for shorter connecting lines between components, thus reducing friction losses and pressure drops.
Boom and stick regeneration loops save energy during boom lowering and stick retracting operations, improving efficiency, shortening cycle times and reducing pressure losses for higher productivity, lower operating costs and more Excellent fuel efficiency.

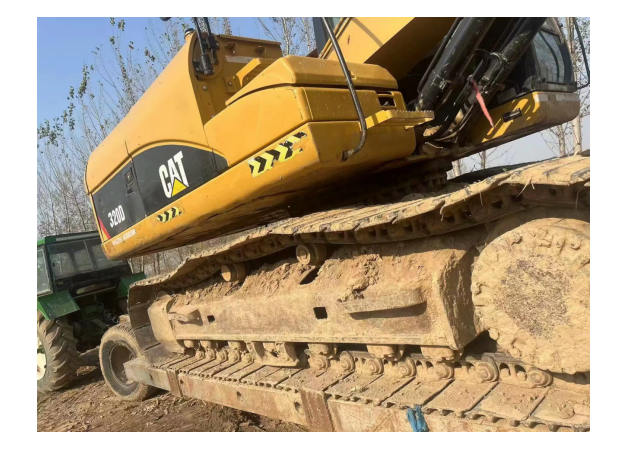

The extended undercarriage (L) offers the best stability and lifting capabilities. This long, wide, strong and durable undercarriage provides a very stable working platform.
The standard undercarriage is ideal for applications that require frequent changes in machine position, limited work space, or uneven or rocky floors.
The X-shaped box-section body has excellent resistance to twisting. The robot-welded track roller frame is a press-formed pentagonal component that provides strength and long service life.
Low-effort pilot-operated joystick controls are designed to allow the operator to maintain a natural wrist and arm position to maximize operator comfort and reduce fatigue
The standard suspension seat can be adjusted fore and aft, height and weight to accommodate the operator's size and weight. In addition, it is also equipped with adjustable wide armrests and retractable safety belts
The cab shell mounts to the frame with adhesive rubber cab mounts that reduce vibration and noise levels while also improving operator comfort
Brand |
Model |
Year |
Weight |
Bucket Capacity |
Working Hours |
Engine Brand |
Engine Power |
Country of Origin |
Remark |
Caterpillar |
CAT320D |
2011 |
20,000kg |
1m³ |
9000h |
C6.4 |
110 |
Japan |
/ |
